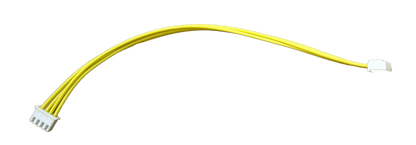

4 pin JST Connector, For External LED's and RCM's

These cables are used to connect either an external LED or RCM to our range of EPC's.

Our EPC 2.0 range use a single JST connector with 30cm trailing leads.

On our EPC 2.0 range, the external LED output is a JST connector under the lid.

For use with the WA 6ma RCM's a 2nd connector is used and the pins correspond to Fault, Test, 12V and 0V outputs from the RCM.

Compatible products can be found here.

• EPC 2.0 range
• 6mA DC Residual Current Monitor
• External LED's

Our EPC 3.0 (OCPP 1.6J) uses a double ended connector to connect the 6mA sensor directly from a JST connection on the lid of the EPC 3.0

• EPC 3.0 (coming soon)
• 6mA DC Residual Current Monitor

Details

• Connector Type - JST XH 2.5mm Pitch Connector JST:B4B-XH-A (LF)(SN)
• Cable length - 30cm Trailing, 20cm for Dual Connector
