WCED Manual Changeover Switches 20A-125A

£7.57 - £19.68
£10.07
£10.07
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • Shop Pay
  • Union Pay
  • Visa

Supplied and supported by Eco Harmony — your trusted UK specialist for EV charging and electrical protection.

1-Year Warranty

Fast UK Shipping

Single & Three Phase

IP40 & IP65 Rated

Hugely Customisable

Standard Shipping 3-5 Buisness days£10
Express Shipping 1-2 Buisness days£20
SKU: WCOS3P20
Collections:

WCED Manual Changeover Switches

Manual changeover switches from WCED for switching a load between two supplies, such as mains and generator. Weatherproof IP66 3 pole units from 20A to 63A, and 125A units supplied bare or in a mini or metal enclosure.

Trade-friendly pricing. Technical support available from the WCED team.

Why choose WCED changeover switches

Two supplies, one load
Select between mains and an alternative source with a single handle.
IP66 3 pole range
20A, 25A, 32A and 63A units rated IP66 for outdoor and damp locations.
125A options
Bare switch, mini enclosure or metal enclosure to suit the installation.
Simple to fit
No tools needed to operate, so it is easy for the end user to use.

3 pole IP66 changeover switches

Part code Rating Poles Protection
WCOS3P20 20A 3 IP66
WCOS3P25 25A 3 IP66
WCOS3P32 32A 3 IP66
WCOS3P63 63A 3 IP66

125A changeover switches

Part code Description Contacts

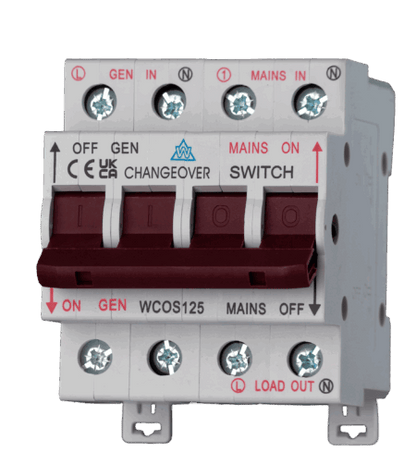

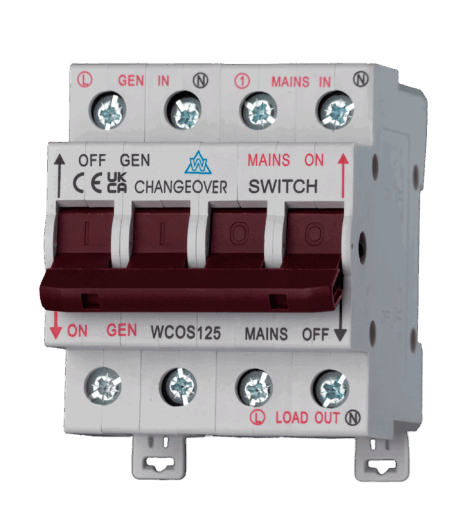

WCOS125 125A changeover switch, bare 2NO 2NC
WMECOS125 125A changeover switch in 4 module mini enclosure 2NO 2NC

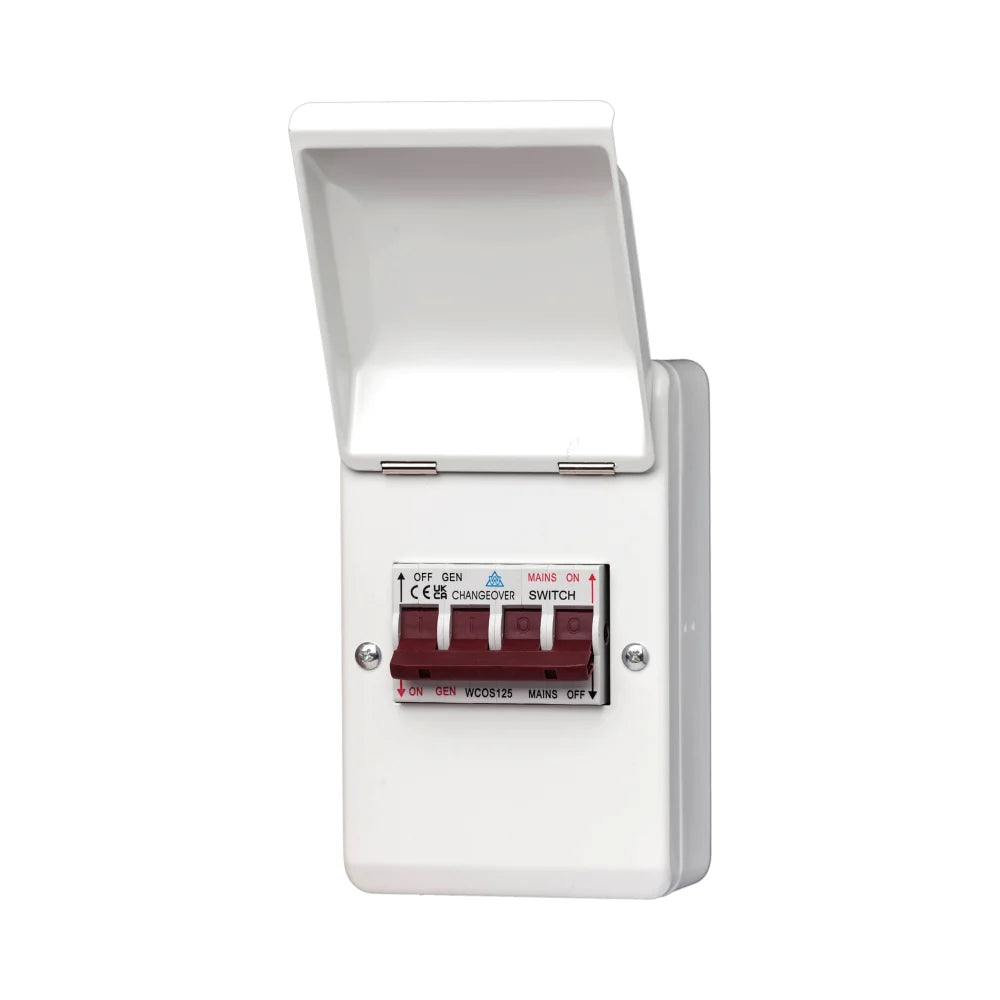

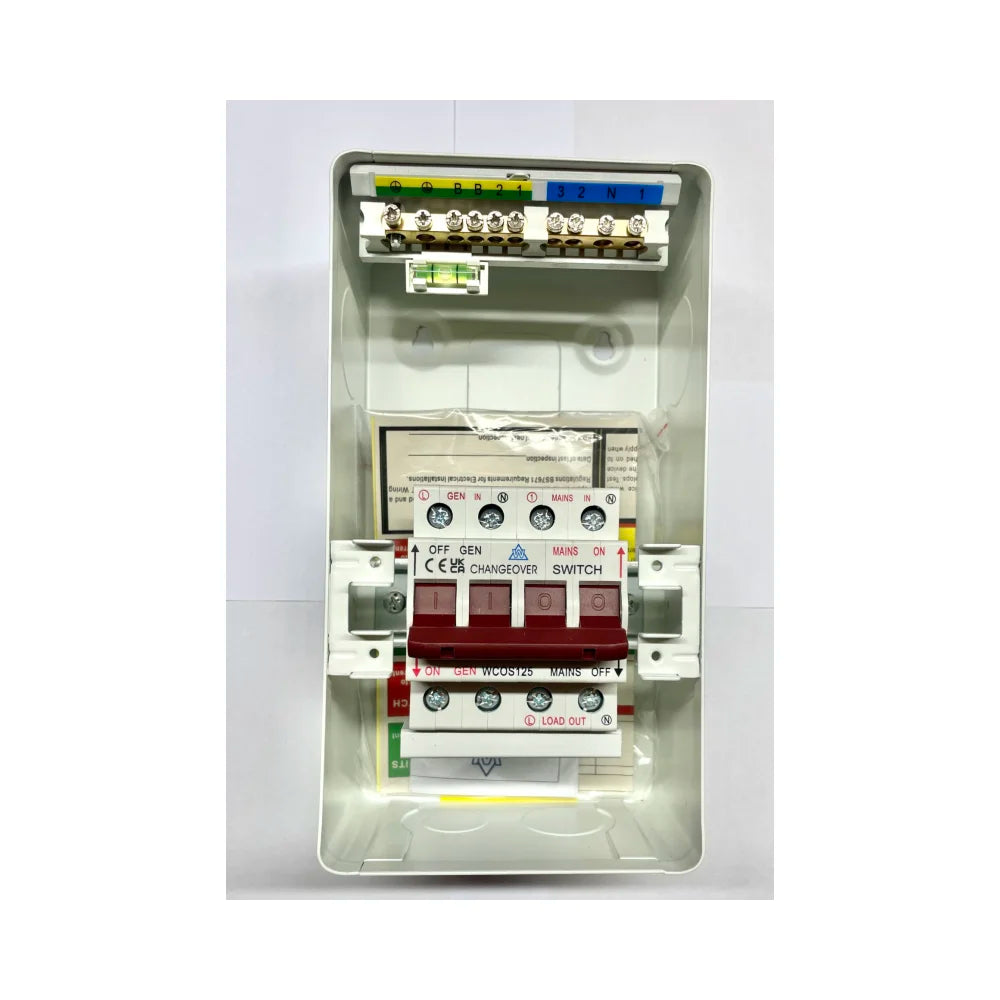

WMECOS125-L 125A changeover switch in 4 module metal enclosure 2NO 2NC

3 pole or 125A: which do I need?

WCOS3P range (20A to 63A) 125A range
Poles 3 pole 2NO 2NC contacts
Protection IP66 Bare switch, mini enclosure or metal enclosure
Best for Smaller circuits: a shed, garage, EV supply or standby circuit Whole-property or larger sub-board changeover
Part codes WCOS3P20, WCOS3P25, WCOS3P32, WCOS3P63 WCOS125, WMECOS125, WMECOS125-L

Choosing between the 125A options

Part code Supplied as Choose it when
WCOS125 Switch only You are fitting it into your own enclosure or board
WMECOS125 Switch in a 4 module mini enclosure You want a compact, ready-to-fit unit
WMECOS125-L Switch in a 4 module metal enclosure You want a metal enclosure for a more robust installation

Before you fit one

A changeover switch only selects between supplies. It does not protect the circuit, so it sits alongside the usual protective devices. Whether the neutral needs to be switched depends on the supplies and the earthing arrangement, so confirm the wiring design with your electrician before ordering. Eco Harmony also stocks WCED RCBOs, surge protection and distribution boards to go with it.

Typical applications

Generator backup
Keep the generator and the mains from feeding the load together.
Garages and workshops
Switch an outbuilding between supplies.
Standby supplies
Select between a primary and a standby feed.
Maintenance switching
Move a load to an alternative supply while work is done.

Data sheets

Download changeover data sheet (PDF)

Frequently asked questions

What does a changeover switch do?
A manual changeover switch lets you select between two supplies, for example mains and a generator, and prevents both being connected to the load at the same time. You turn the handle to choose the feed.
What is the difference between a changeover switch and an isolator?
An isolator simply opens and closes one circuit. A changeover switch selects one of two sources for a load, with an off position in between on most models. They are not interchangeable.
Can I use one to connect a generator to my home?
A changeover switch is the usual way to keep a generator and the mains from feeding the same circuit, but the installation as a whole still has to comply with BS 7671, including earthing arrangements and any notification to the network operator. Use a competent electrician.
What do WCOS125, WMECOS125 and WMECOS125-L include?
WCOS125 is the 125A 2NO 2NC switch on its own. WMECOS125 is the same switch fitted in a 4 module mini enclosure. WMECOS125-L is the same switch in a 4 module metal enclosure.
What does IP66 mean on the WCOS3P range?
IP66 is a high level of protection against dust and powerful water jets, so the 3 pole WCOS3P units are suited to outdoor or damp locations such as an external wall or garage.
Do I need a 3 pole or a 4 pole changeover switch?
It depends on whether the neutral has to be switched, which is set by the supplies and the earthing arrangement. Ask your electrician to confirm before you order.
Which rating should I choose?
Choose a rating equal to or above the maximum load on the circuit. For smaller circuits such as a shed, garage or EV supply, the 20A to 63A 3 pole units are the usual choice. The 125A units suit whole-property changeover.
