Product details & specifications
What this product does
A TPN distribution board distributes a three-phase and neutral supply into separately protected outgoing circuits. This WCED range provides a housing and incoming switching arrangement for the compatible outgoing devices selected for the project.
When to use it
Use it for commercial, workshop or multi-circuit installations where a three-phase distribution board is specified. Plan the outgoing circuits and phase loading before choosing the board capacity.
What is included

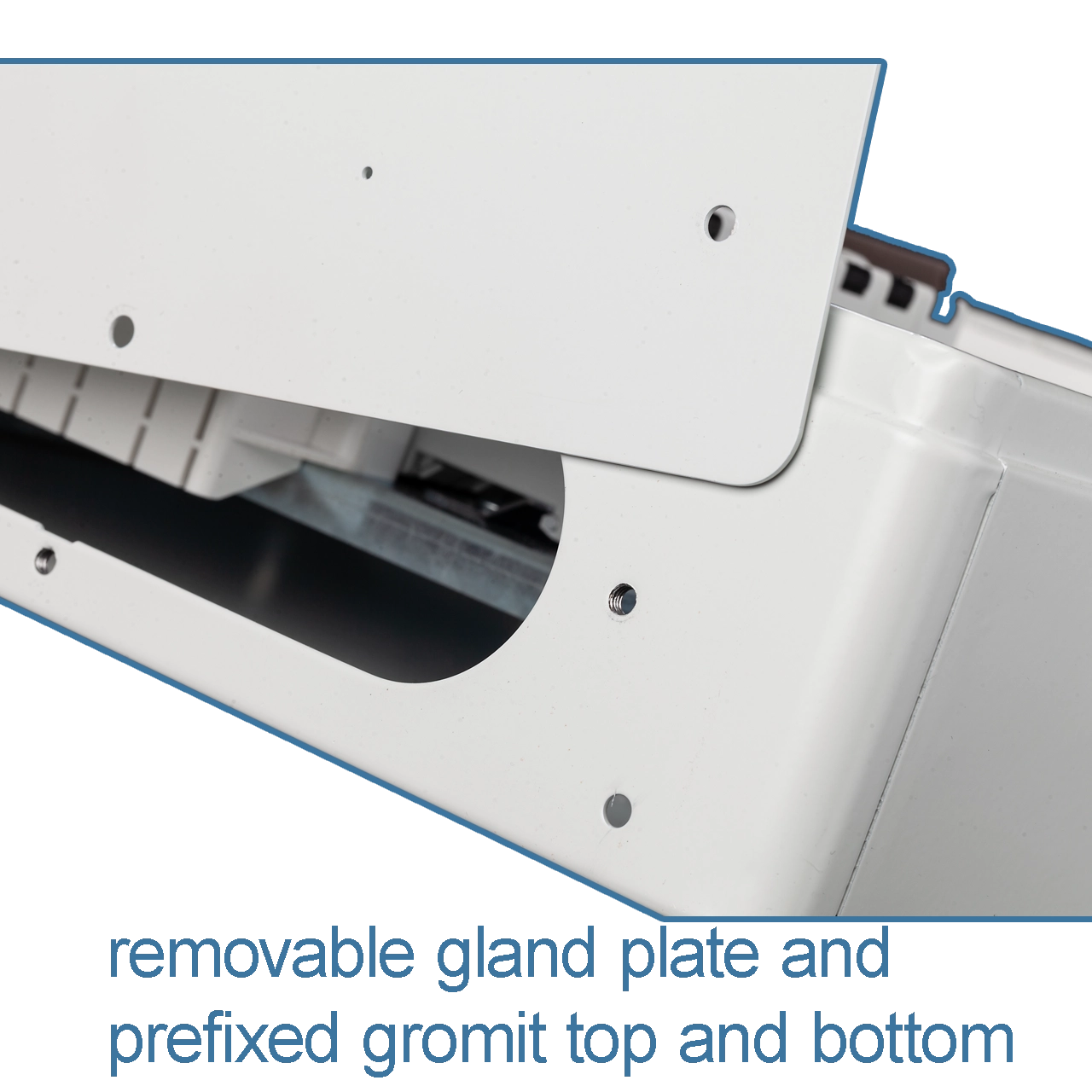

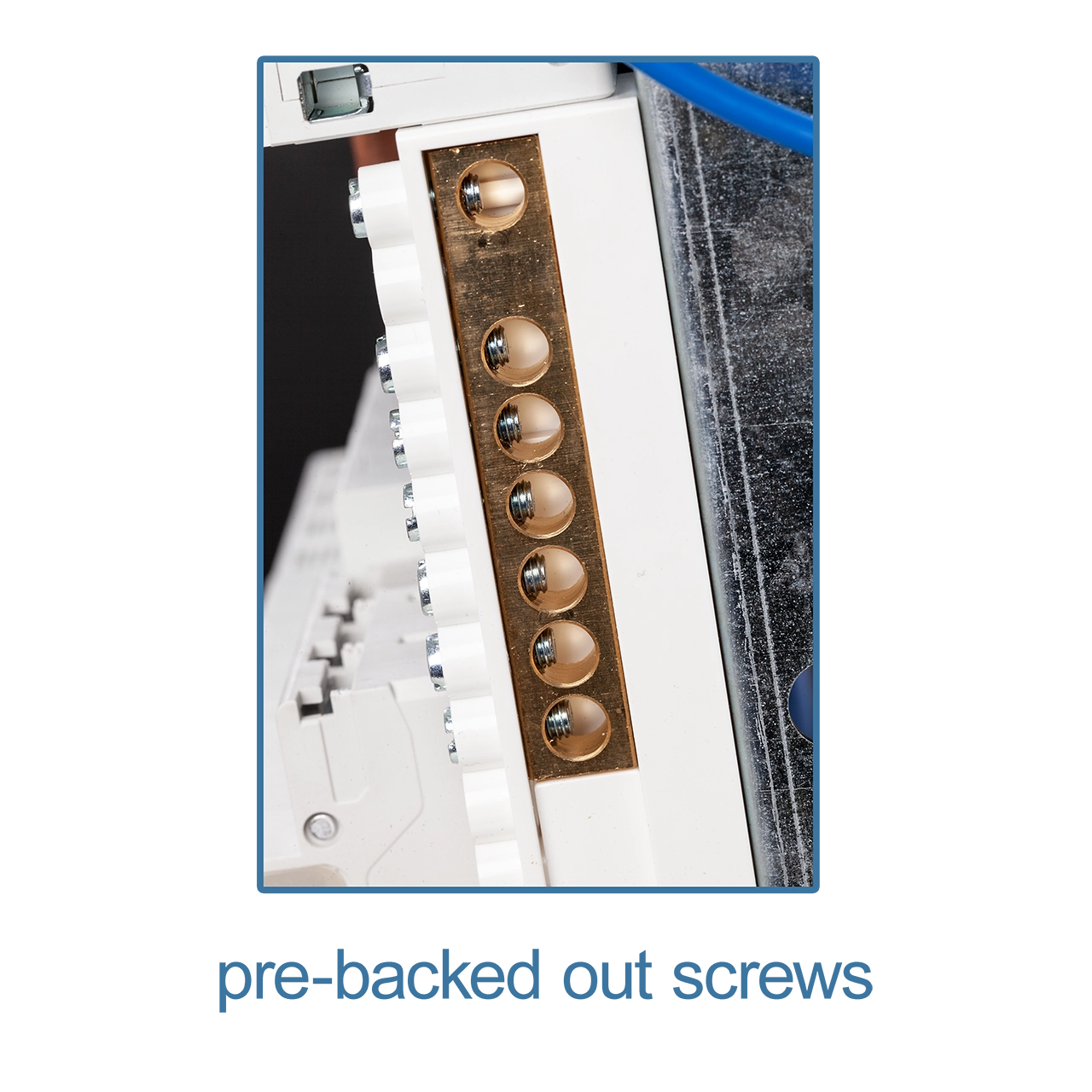

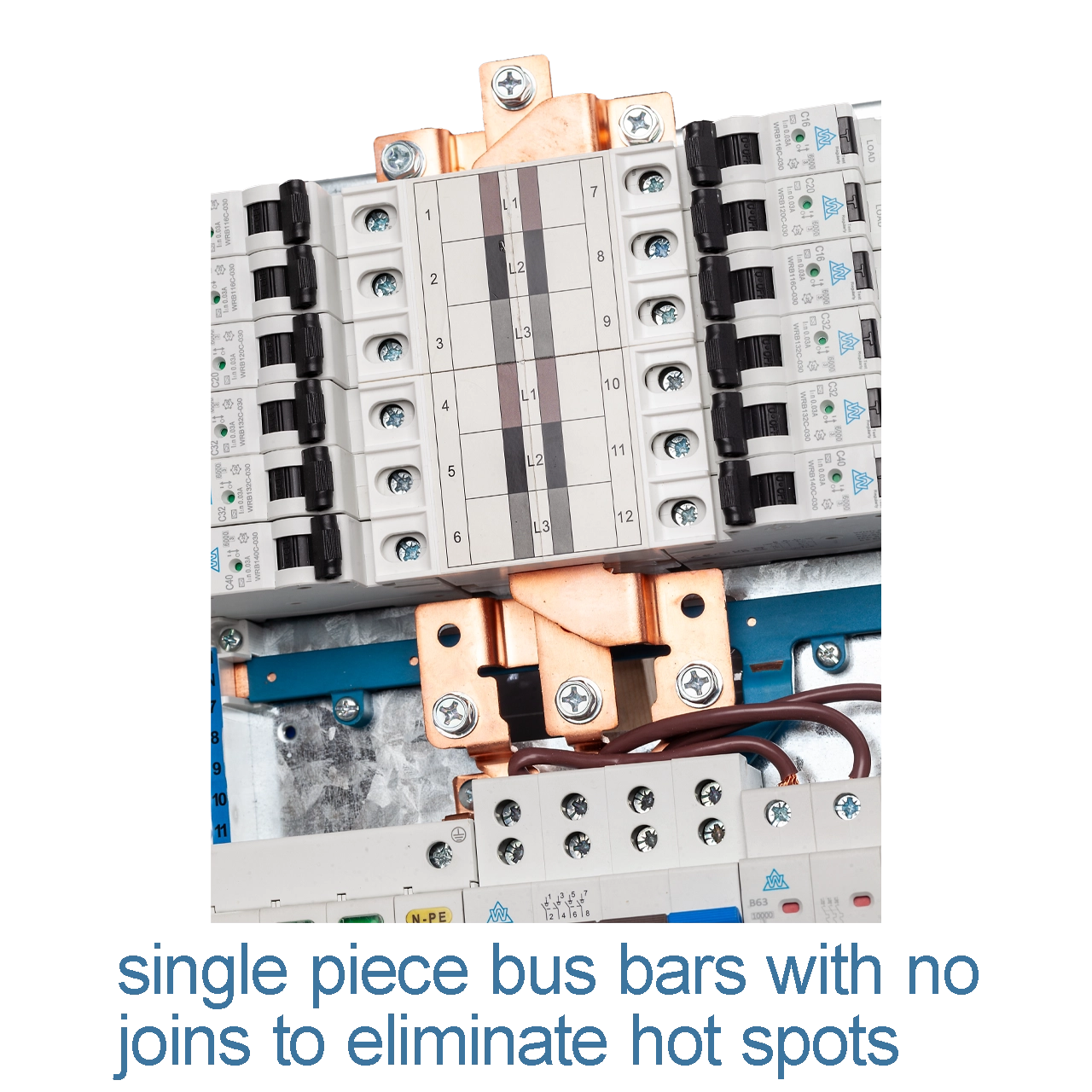

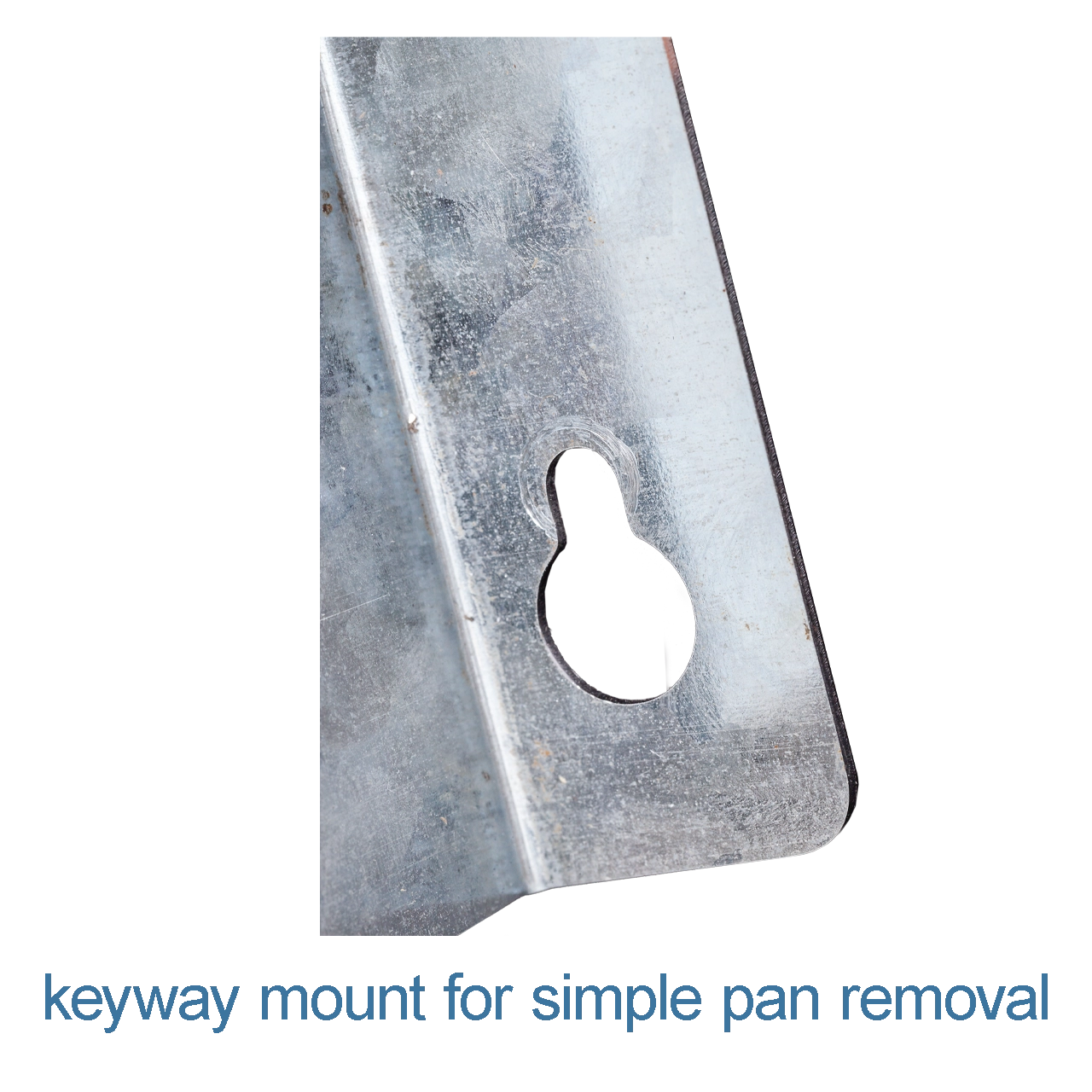

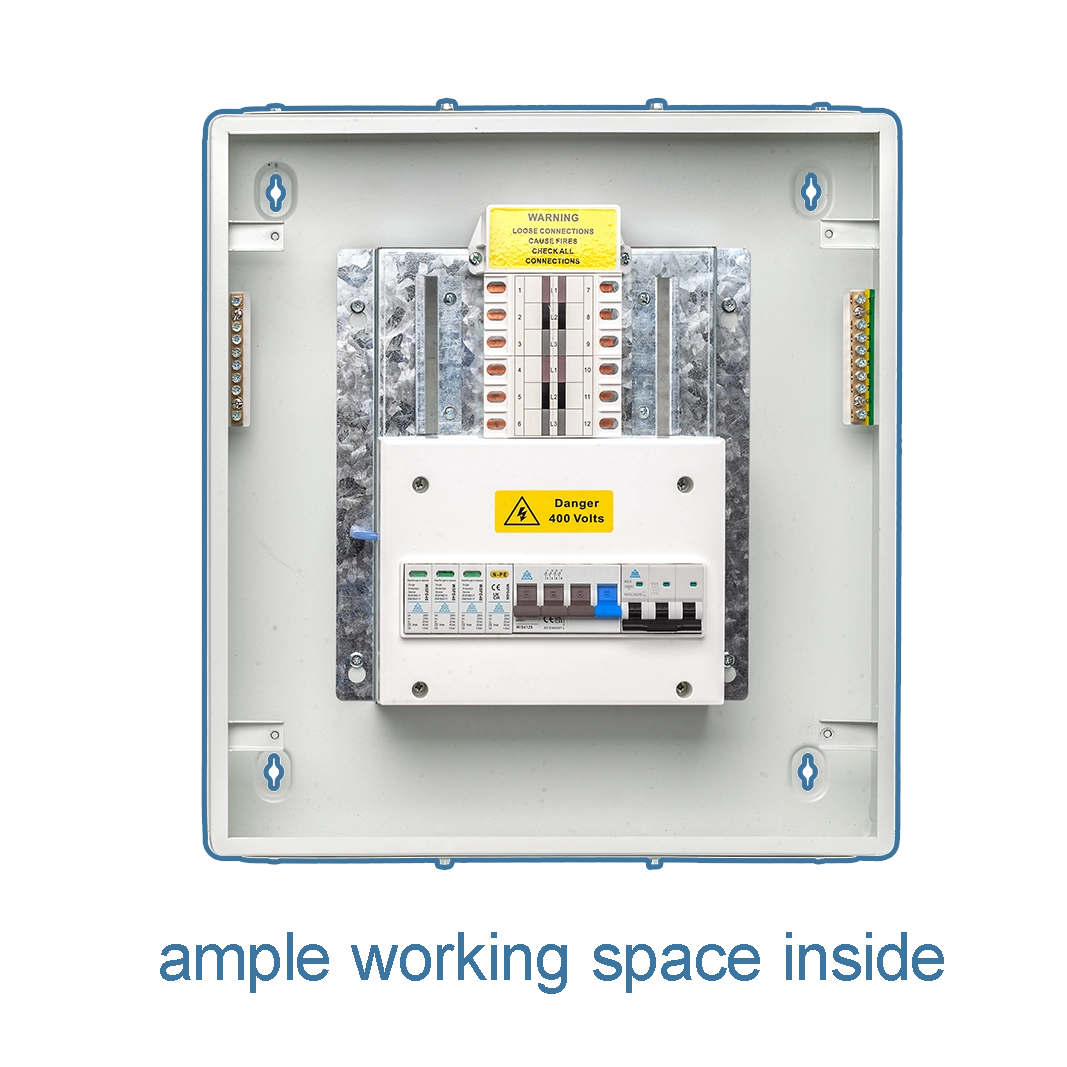

- Board variants: steel enclosure, four-pole 125A main switch and Type 2 SPD.
- Accessory variants: the named spreader or extension box only; these are not complete distribution boards.
- Order outgoing protective devices to match the agreed component schedule. Confirm any model-specific included breaker before ordering.
Choosing your options
Choose a 4, 6, 8, 12, 16 or 24-way board, then match compatible MCBs and RCBOs to each circuit. WTPNSB is the spreader box for cable space. WTPNEB14 is the 14-module extension box for additional modular equipment.
What it does not replace
The 125A main switch is an isolation rating, not an outgoing circuit breaker. An SPD has no RCD function. Board size and connected charger count do not establish that every circuit can run at full load simultaneously.
Specifications and dimensions

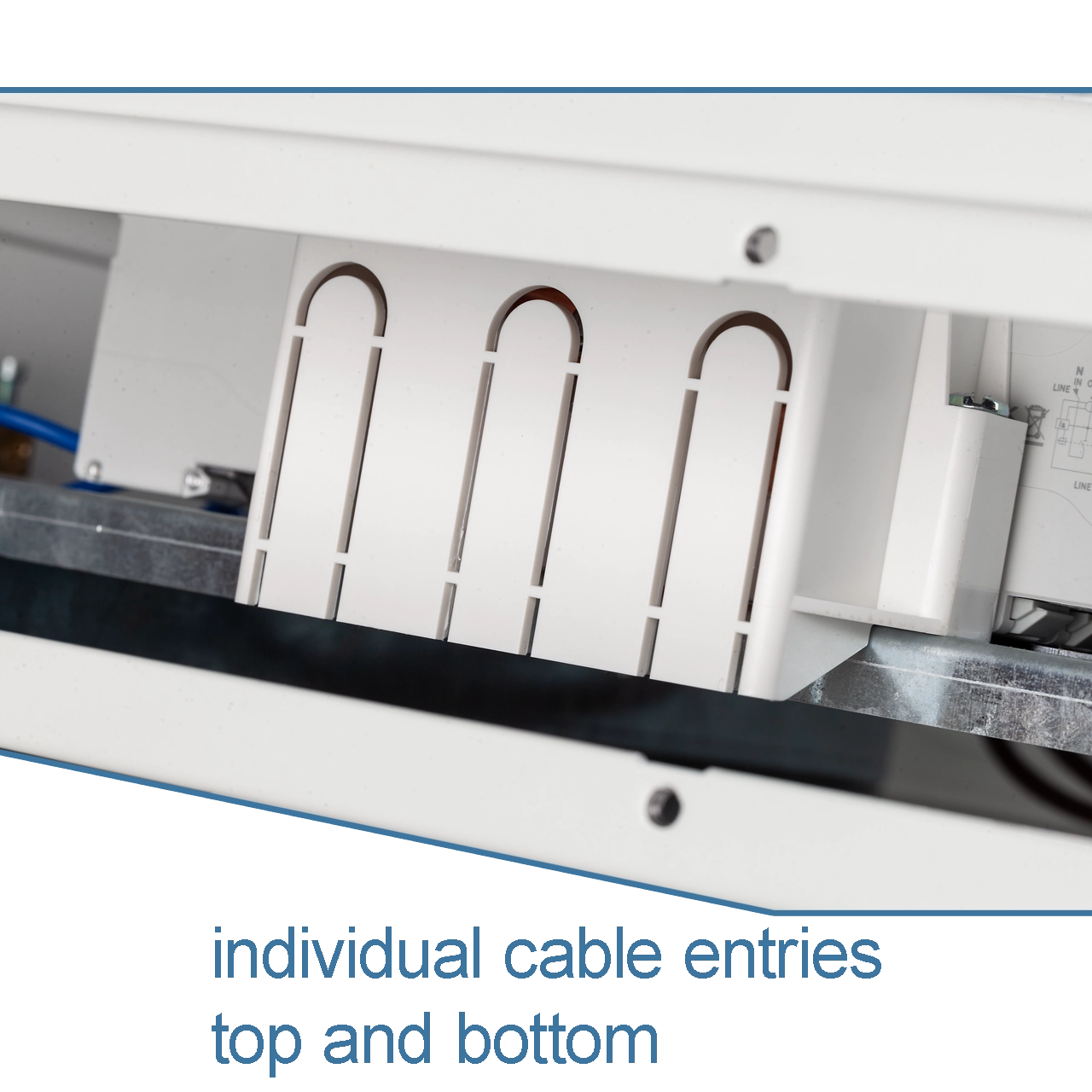

Use the selected configuration above for its part code and current price. Match the exact device and enclosure to the manufacturer’s technical information, allowing cable-entry and wiring clearance as well as the product dimensions.
Product dimensions in millimetres: width × height × depth. Match the part code to your selected variant. Allow additional installation and cable clearance.
| Part code / variant | W × H × D (mm) |
|---|---|
|
WTPN04-125 4 |
460 × 505 × 120 |
|
WTPN06-125 6 |
460 × 559 × 120 |
|
WTPN08-125 8 |
460 × 613 × 120 |
|
WTPN12-125 12 |
460 × 710 × 120 |
|
WTPN16-125 16 |
460 × 829 × 120 |
|
WTPN24-125 24 |
460 × 1045 × 120 |
|
WTPNSB Spreader Box |
460 × 433 × 97 |
|
WTPNEB14 14 - Extension Box |
460 × 341 × 120 |
Manufacturer range and technical information
Common questions
Are the spreader and extension options complete boards?
No. They are accessories for the WTPN arrangement. Select a numbered board-size option for a distribution board.

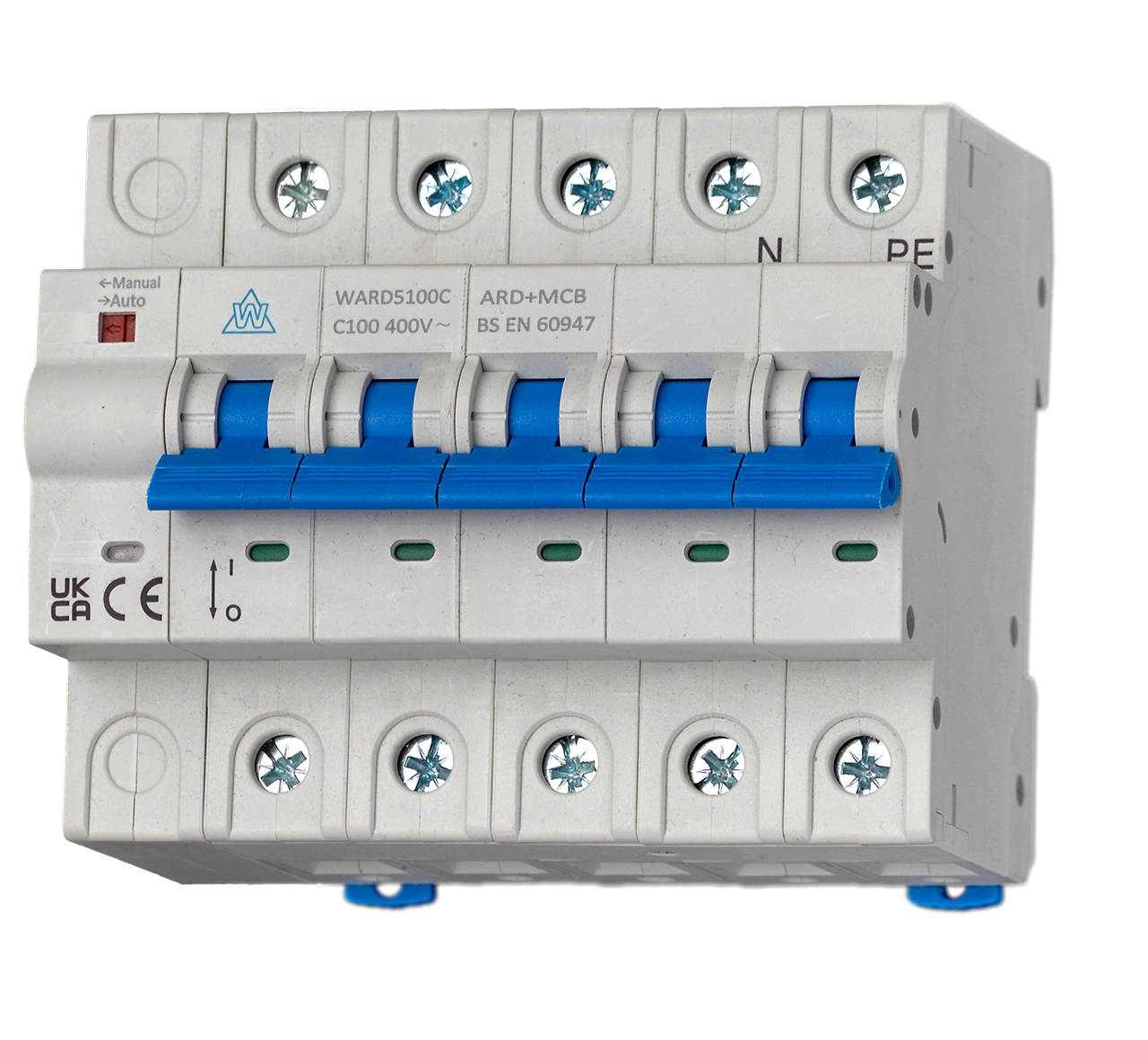

Which outgoing breakers should I use?
Select devices approved for the exact WCED board, with the current, curve, poles and fault capacity specified for each circuit. DIN dimensions alone are not enough.
Delivery and help choosing
WCED standard delivery is £10, normally 1–2 working days. Express delivery is £20, normally next working day. WCED products are excluded from free delivery.
Ask us to help identify the right part — send the part code or equipment model and the specification you need.
