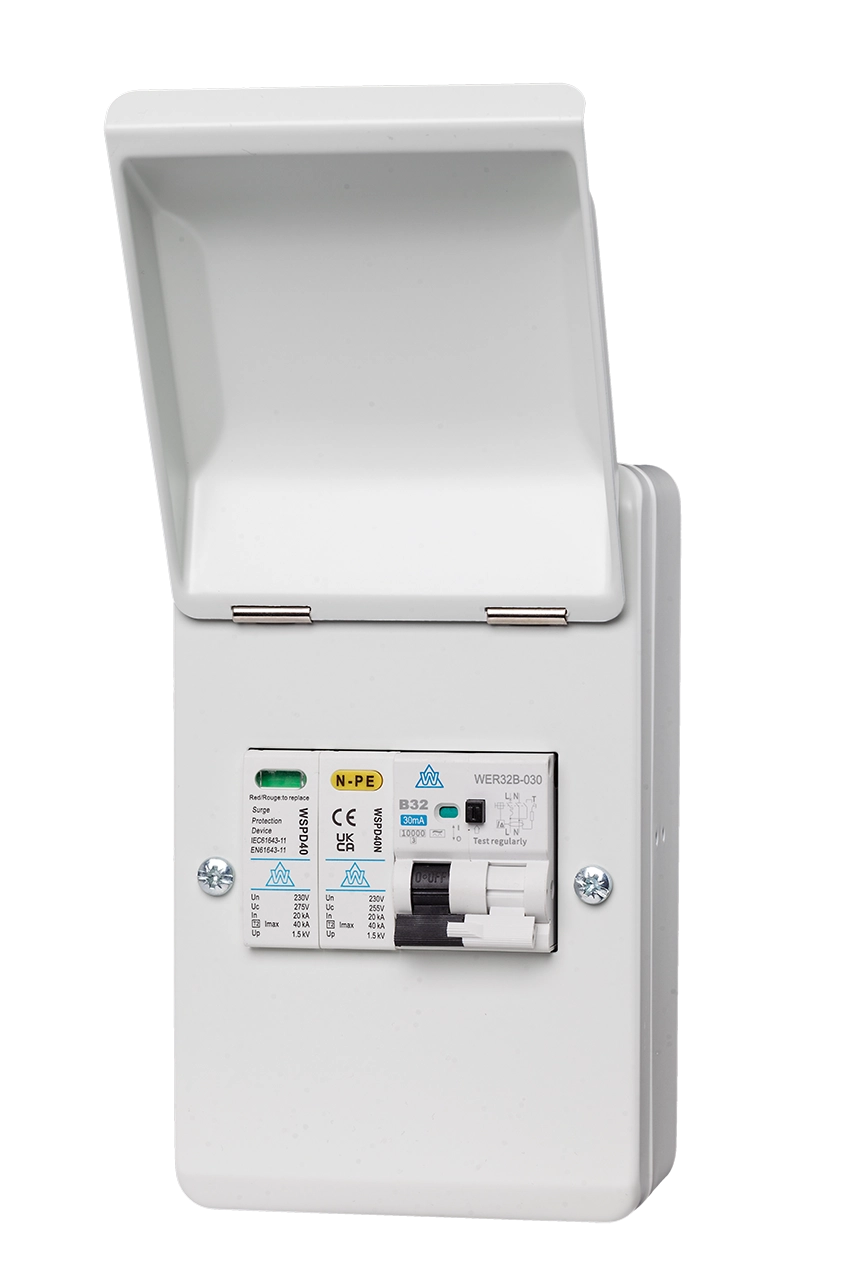

RCBO + Surge Protection Fitted Consumer Unit (IP30 / Indoor Use)

⚡ RCBO + Surge Protection Fitted Consumer Unit (IP30 / Indoor Use)

Compact, pre-populated consumer unit with 32A or 40A RCBO + Type 2 SPD — ideal for EV chargers, solar systems, and general indoor distribution.

This premium indoor-rated consumer unit combines essential electrical protection features in one neat, installer-ready enclosure.
With an integrated RCBO (32A or 40A) and Type 2 Surge Protection Device (SPD), it’s designed for fast, compliant installations in garages, plant rooms, workshops, or utility spaces.

Its IP30 metal housing offers robust protection against solid objects while remaining compact enough for confined indoor environments — making it the ideal choice for EV charger backplates, inverter connections, or small sub-distribution points.

🔧 Key Features

• Pre-Fitted RCBO (32A or 40A)
  Available in both 32A and 40A options, this single-pole RCBO protects against overloads, short circuits, and residual currents.
  Bidirectional design allows flexible top or bottom feed, simplifying layout on-site.

• Type 2 Surge Protection Device (SPD)
  Integrated Type 2 SPD protects your connected circuits from transient overvoltages caused by switching events or lightning surges.
  Compliant with BS 7671:2018 Amendment 2 (18th Edition).

• Durable IP30 Metal Enclosure
  Designed for indoor environments — garages, workshops, plant rooms, or sheltered spaces — with easy wall mounting and cable knockouts.

• Compact and Tidy Installation
  The pre-wired assembly reduces on-site labour time, ensuring a neat, professional finish for every job.

• Fully Compliant & Ready to Install
  Meets all requirements of IEC 60364 and BS 7671 (18th Edition) for surge protection and circuit isolation.

⚙️ Technical Specifications

⚡ Applications

• Indoor EV charger consumer units

• Solar inverter sub-boards

• Battery storage and hybrid systems

• Workshop or garage power supplies

• Indoor lighting or small-load circuits

💡 Installer Notes

• Supplied pre-assembled and pre-tested for quick installation.

• Suitable for EV chargers with built-in DC leakage protection.

• Ensure all terminations are torqued to manufacturer recommendations.

• Always verify SPD earthing connection continuity for optimal surge protection.

⚠️ Safety Information

This product must be installed by a qualified electrician in accordance with IET Wiring Regulations BS 7671 (18th Edition or later).
Always isolate the electrical supply before removing the cover or working on the unit.
Contains live conductors — do not remove cover until the supply is disconnected.

📄 Datasheet

Available here Datasheet

🧰 Why Choose This Unit

• Pre-built by WCED for consistency and quality

• Reduces install time compared to separate component setups

• Compact and reliable — perfect for professional installers

• Compatible with all major EV charger brands including Zappi, Easee, Tesla, and Hypervolt
