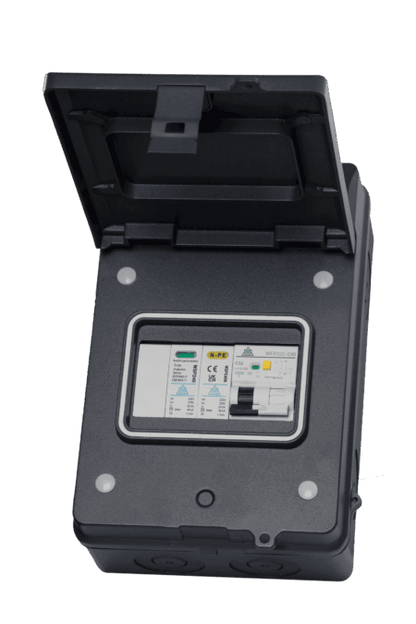

IP65 Metal EV Consumer Unit – RCBO, MCB & Surge Protection

£47.00 - £49.50
£49.50
£49.50
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • Shop Pay
  • Union Pay
  • Visa

Supplied and supported by Eco Harmony — your trusted UK specialist for EV charging and electrical protection.

1-Year Warranty

Fast UK Shipping

Single & Three Phase

IP40 & IP65 Rated

Hugely Customisable

Standard Shipping 3-5 Buisness days£10
Express Shipping 1-2 Buisness days£20
SKU: WMIP/MS32CSP
Collections:

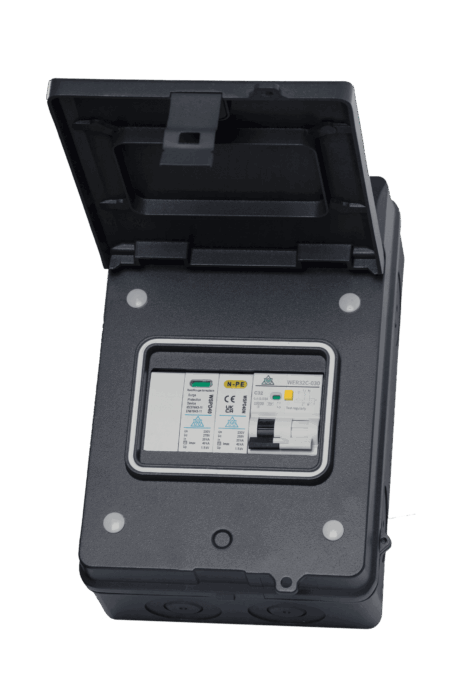

This pre-fitted single-phase IP65 metal consumer unit comes ready-wired with a 40A C curve RCBO and Type 2 surge protection device, designed for EV charger installations where all the protection needs to be in a single, tough, weatherproof enclosure. It reduces installation time by arriving fully assembled — the installer simply mounts it, makes the incoming and outgoing connections, and the board is ready. Choose between RCBO + SPD or Main Switch + RCBO + SPD.

Pre-wired and ready to connect. All components are factory-fitted in a lockable, non-combustible aluminium enclosure with an IP65 rating, suitable for garages, workshops and outdoor EV charger installs.
Does not include PEN fault detection. If the installation is on a PME supply, a separate PEN fault detection device is required under BS 7671. See our combined PEN fault + surge unit for the all-in-one PME solution.

Choose your configuration

Configuration SKU Includes
RCBO + SPD WMIP40CSP 40A Type A RCBO (C curve), Type 2 SPD

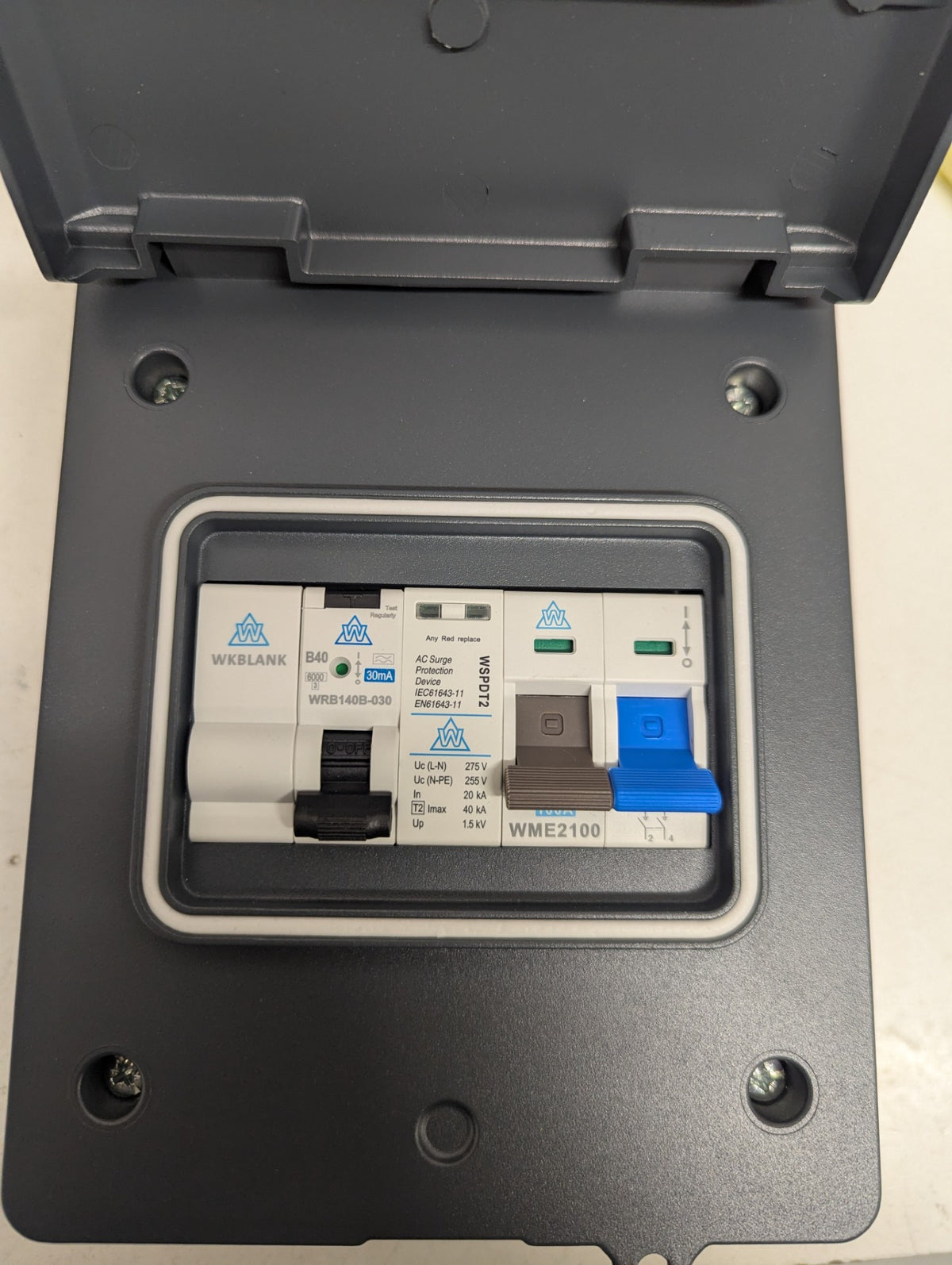

Main Switch + RCBO + SPD WMIP/MS40CSP 100A main switch, 40A Type A RCBO (C curve), Type 2 SPD

What's included

  • RCBO (Type A, 40 A, C curve) — combined residual current and overcurrent protection
  • Type 2 surge protection device (SPD) with green/red status indicator
  • 100A main switch (Main Switch configuration only)

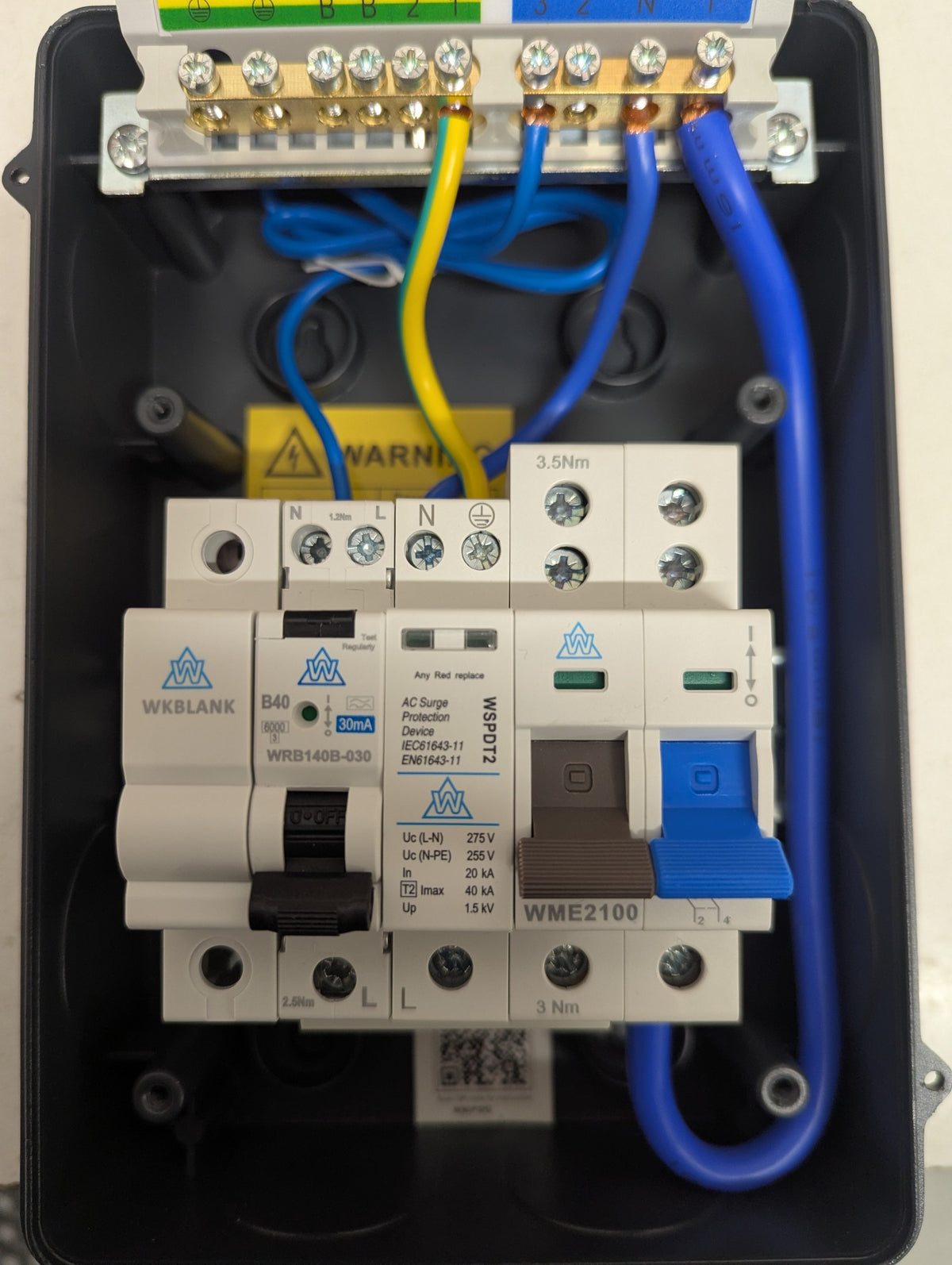

  • 5-module IP65 aluminium enclosure — pre-wired and ready to connect, with DIN rail, neutral cable, neutral and earth terminals and busbar

Technical specifications

Specification Detail
Supply type Single-phase, 230V, 50Hz
RCBO rating 40 A, Type A, C curve
Main switch 100 A (Main Switch configuration only)
Surge protection Type 2 SPD, green/red status indicator
Enclosure 5-module aluminium, IP65, non-combustible, padlockable

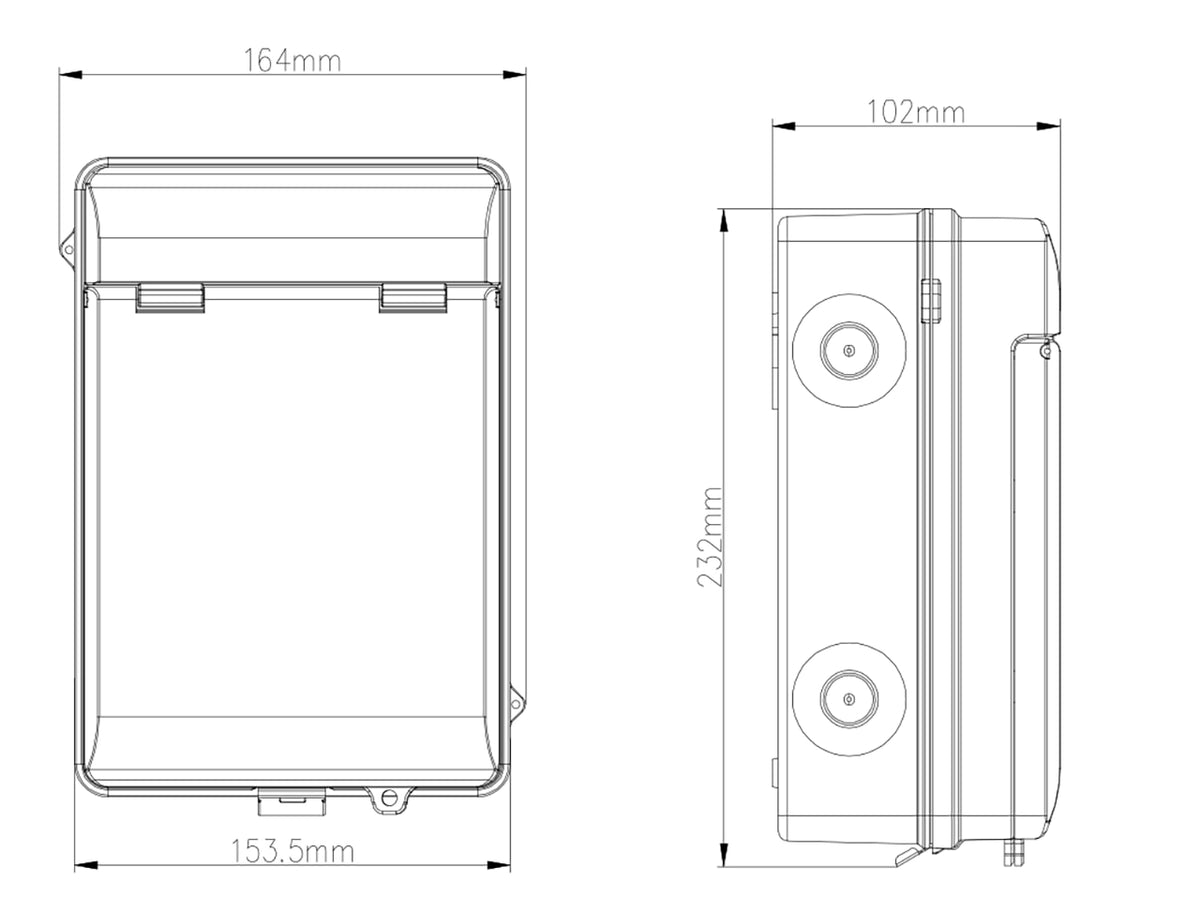

Dimensions 232 mm (H) x 164 mm (W) x 102 mm (D)
Incoming terminals Cage clamp, 35 mm² max
Cable entry M20 knockouts, can be drilled to M32
Supplied Pre-wired, factory assembled
Mounting 35 mm DIN rail
Ambient temperature -25 °C to +40 °C
Standards BS EN 61439-3, BS EN 61009-1, BS EN 61643-11
Regulation compliance 18th Edition BS 7671
Suitable for Single-phase 7 kW EV chargers, domestic and light commercial

Frequently asked questions

What does pre-fitted or ready-wired mean?
It means the RCBO and surge protection device are already installed and wired inside the enclosure when it arrives. The installer does not need to fit individual components — they simply mount the board, connect the incoming supply, and connect the outgoing circuit to the EV charger. This saves time on site, particularly when installing multiple units.
Which configuration should I choose?
Choose RCBO + SPD for a straightforward EV charger circuit. Choose Main Switch + RCBO + SPD if you also want a 100A main switch to isolate the whole board in one operation, which makes testing and maintenance simpler.
Does this include PEN fault detection?
No. This board provides RCBO and surge protection only. For a PME supply, you also need PEN fault detection — either a separate module or the combined PEN fault + surge unit which includes all three functions in one enclosure.
What type and rating of RCBO is included?
A 40 A Type A RCBO with C curve. Type A detects AC and pulsating DC earth leakage, with 6mA DC protection. The twin-handle design shows the cause of a trip: if only the black handle trips, it indicates overload or short circuit; if both the black and white handles trip, it indicates a residual current fault.
How do I know when the surge protection needs replacing?
The Type 2 SPD has a visual indicator. Green means good, red means replace the module.
Is this suitable for a domestic installation?
Yes. This unit is designed primarily for domestic single-phase EV charger installs, and the metal IP65 enclosure suits outdoor and garage locations. It can also be used on light commercial installs with a single-phase supply. For 3-phase or commercial multi-charger applications, see our 3-phase range.
