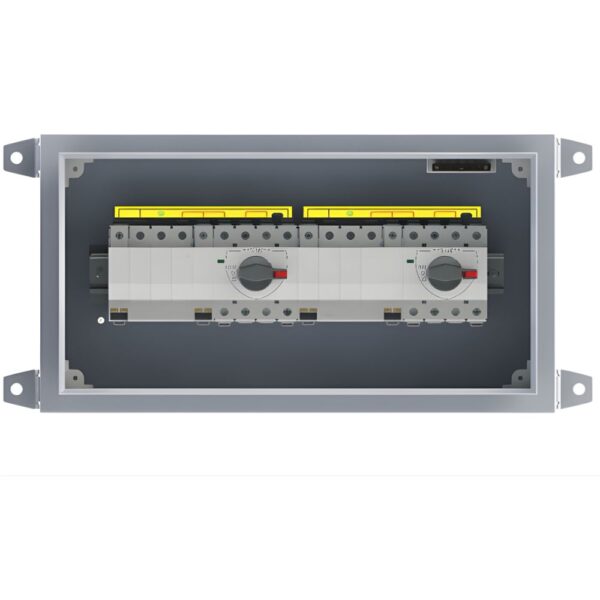

Product details & specifications
What this product does
This solar PV box brings DC isolation and DC surge protection together between the array and inverter. It provides a fitted enclosure for the specified string paths and protective equipment.
When to use it
Use it where the PV layout needs this combination of local DC isolation and transient-overvoltage protection. Select the box to match the string and inverter MPPT arrangement.
What is included
- An IP65 metal or plastic enclosure, as selected.
- PV DC isolation and Type 2 DC surge protection for the selected one-string or two-string arrangement.
Choosing your options

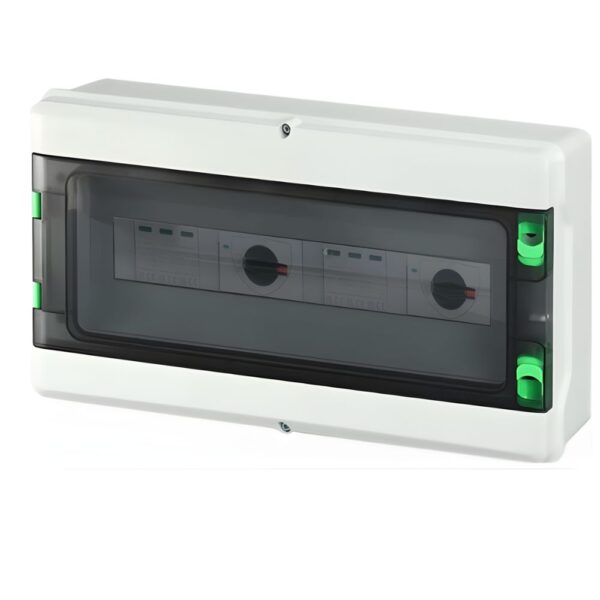

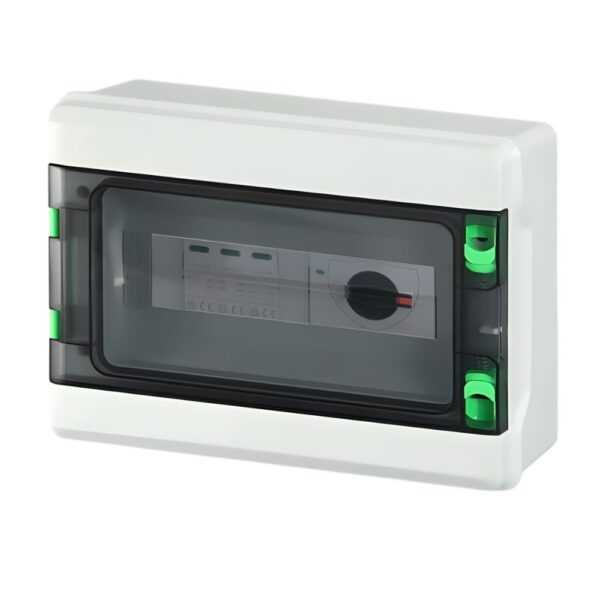

Choose one input/one output or two inputs/two outputs, then the enclosure material. The listed 1000V DC rating must suit the calculated maximum array voltage. Two string paths do not automatically mean the strings are connected in parallel.
What it does not replace

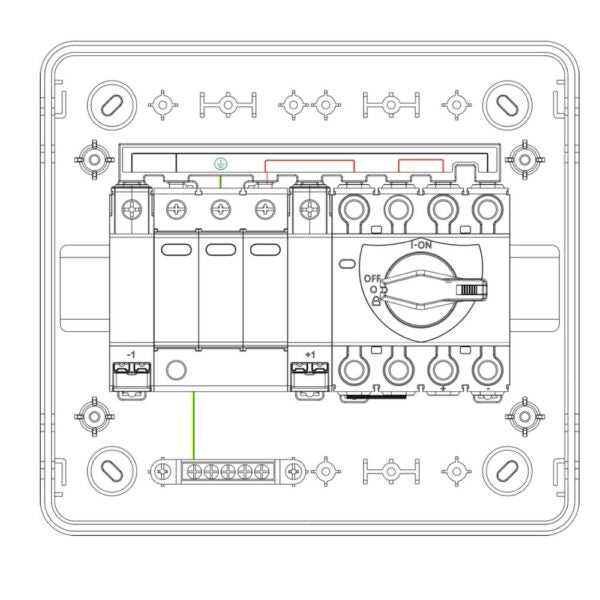

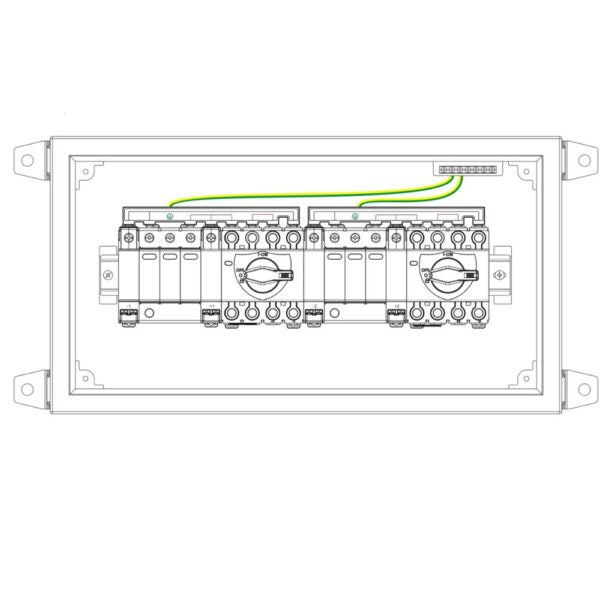

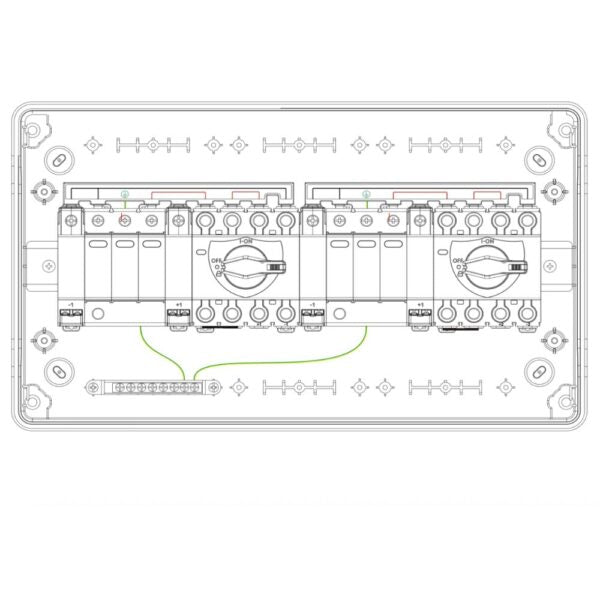

The box does not make illuminated PV panels or all array cables voltage-free. Confirm the exact wiring diagram, string current, voltage, polarity and any required fusing. It is not a replacement for inverter-side AC protection.
Specifications and dimensions
Use the selected configuration above for its part code and current price. Match the exact device and enclosure to the manufacturer’s technical information, allowing cable-entry and wiring clearance as well as the product dimensions.

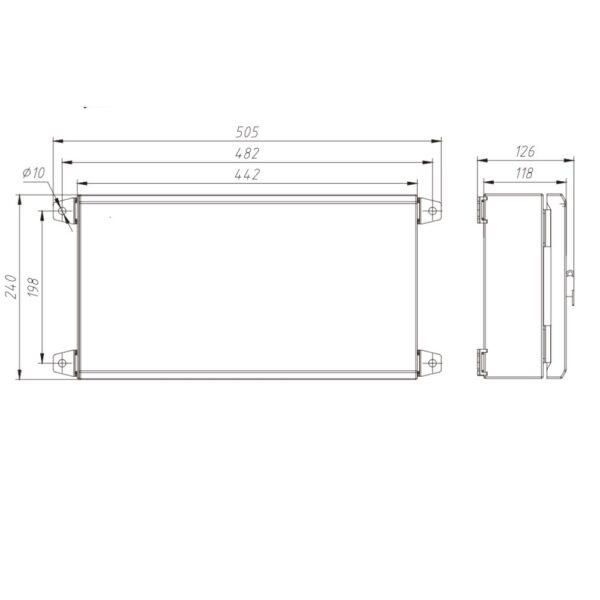

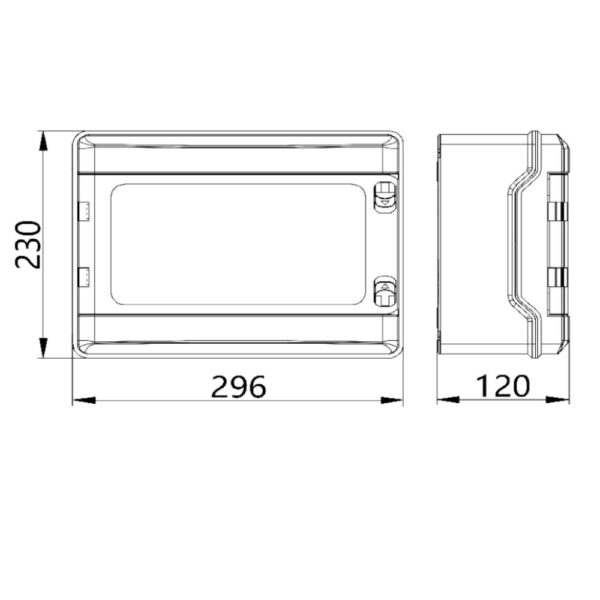

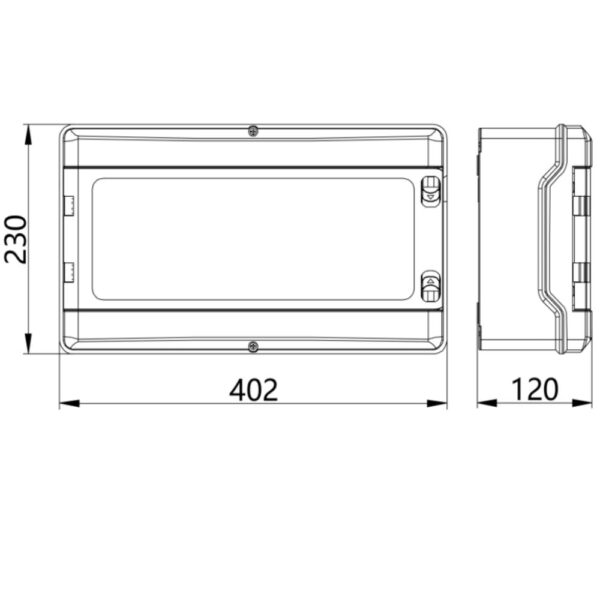

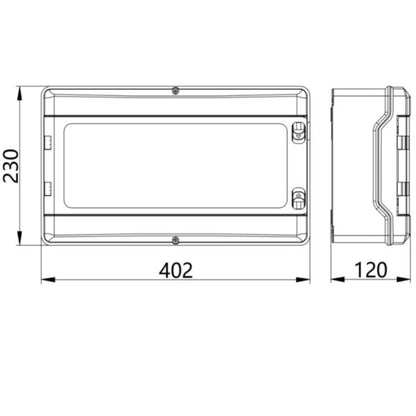

Product dimensions in millimetres: width × height × depth. Match the part code to your selected variant. Allow additional installation and cable clearance.
| Part code / variant | W × H × D (mm) |
|---|---|
|
WMPV-1S1 1 String / Metal IP65 |
280 × 240 × 118 |
|
WPPV-1S1 1 String / Plastic IP65 |
280 × 240 × 118 |
|
WPPV-2S2 2 String / Plastic IP65 |
280 × 240 × 118 |
Dimensions shown are enclosure dimensions; allow additional space for cable glands and connections. WMPV-2S2 dimensions are awaiting manufacturer confirmation.
Manufacturer range and technical information
Common questions
Does the two-string box combine the strings into one output?

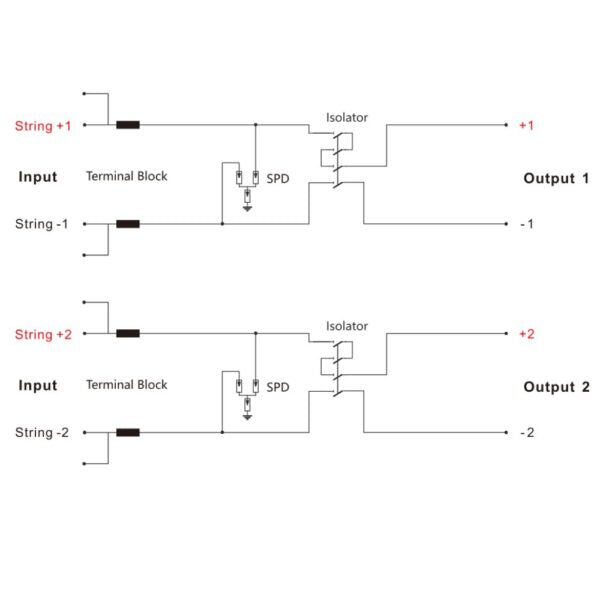

The listed configuration is two inputs and two outputs. Follow its wiring diagram and the inverter’s MPPT requirements; do not assume parallel connection.
Is IP65 suitable for submersion?
No. IP65 concerns dust and water-jet ingress. Installation details, cable glands and the manufacturer’s environmental limits still apply.
Delivery and help choosing
WCED standard delivery is £10, normally 1–2 working days. Express delivery is £20, normally next working day. WCED products are excluded from free delivery.
Ask us to help identify the right part — send the part code or equipment model and the specification you need.
