By EcoHarmony

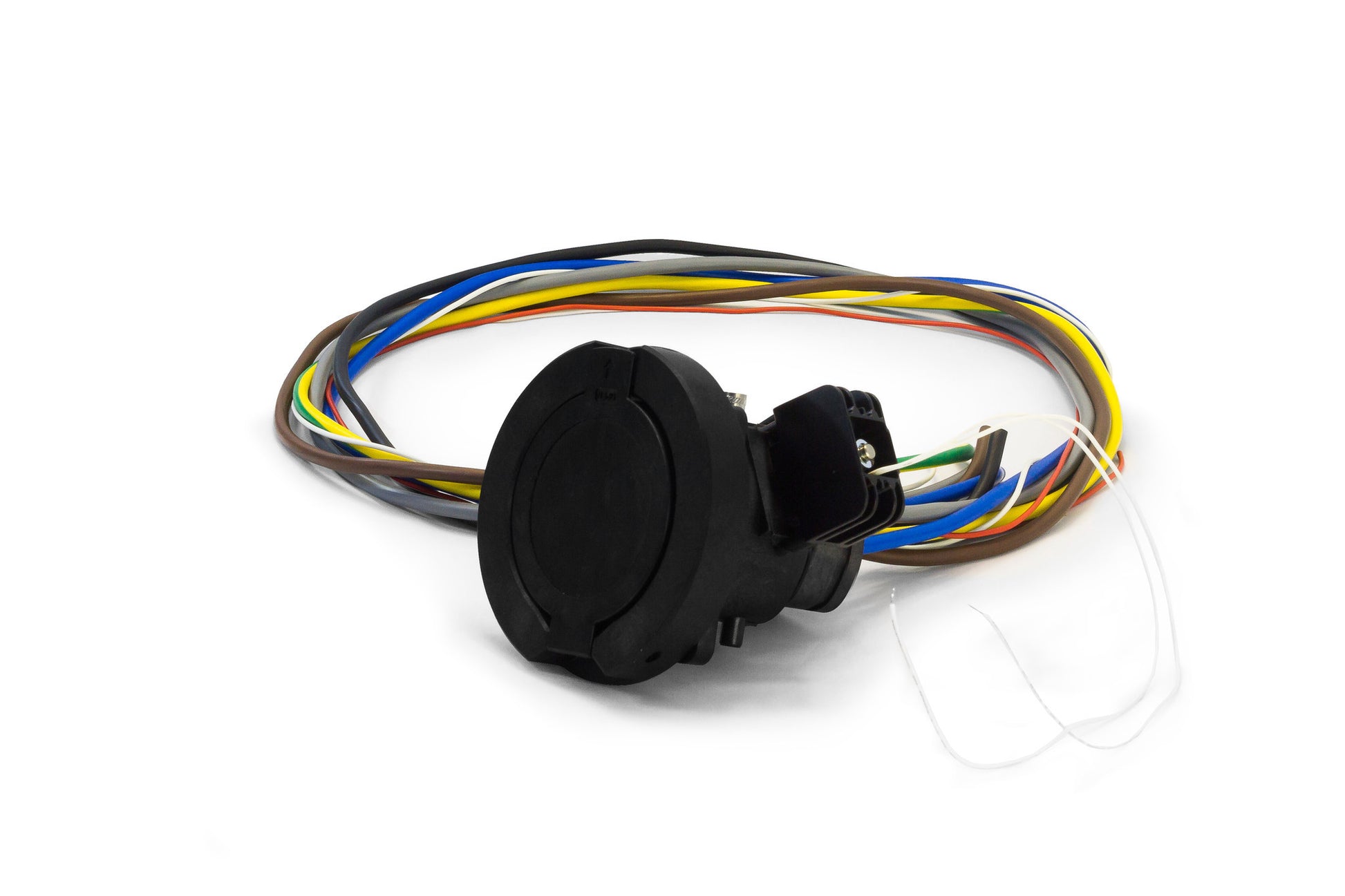

Type 2 32A Female Socket (Solenoid Locking) (1 and 3 Phase Variants)

£52.50 - £80.00
£52.50
£52.50
Availability: 322 in stock
SKU: S32-2-SL1
Collections:

 IEC62196 (Type 2) Socket/Outlet supplied with tails/wires attached. Useful as a replacement part for a free/socket Charge Point or to those wishing to build their own EVSE (Electric Vehicle Supply Equipment).

  • 4 Point Fixing
  • Hinged lid
  • Solenoid locking mechanism (12V DC) secures plug in socket
  • IP54 rated protection (With Lid)
  • Water Drain
  • Single Phase Variant -Fitted with 1 Phase wiring,
  • Available with 0.2m, 0.5m 1m of professionally crimped wires
  • Three phase variant - Fitted with 3 Phase wiring, 1m of Cable Tail Professionally fitted. Also suitable for single phase charging. (2m Cable tail length available by request)
Prices are exclusive of VAT
EV 32A Female Socket
£52.50
£52.50

Customer Reviews

Based on 1 review
0%
(0)
100%
(1)
0%
(0)
0%
(0)
0%
(0)
M
Michael
IEC62196 (Type 2) Socket/Outlet

I was unable to screw in the tiny button headed self-tapping allen screws that hold the Lock Solenoid to the socket. The allen sockets are too shallow and the allen key slips. Cap head screws might be better. With no response from ecoharmony I drilled and tapped the holes to take M4 bolts.
