Panel mount LED for Viridian EV EPC (Charge point controller)

ecoHarmony

£9.45
£11.34 Inc. VAT

Panel mount LED for Viridian EV EPC (Charge point controller)
Panel mount LED for Viridian EV EPC (Charge point controller) Panel mount LED for Viridian EV EPC (Charge point controller) Panel mount LED for Viridian EV EPC (Charge point controller) Panel mount LED for Viridian EV EPC (Charge point controller)

ecoHarmony

£9.45
£11.34 Inc. VAT

has been successfully added to your cart . Feel free to continue shopping or check out .

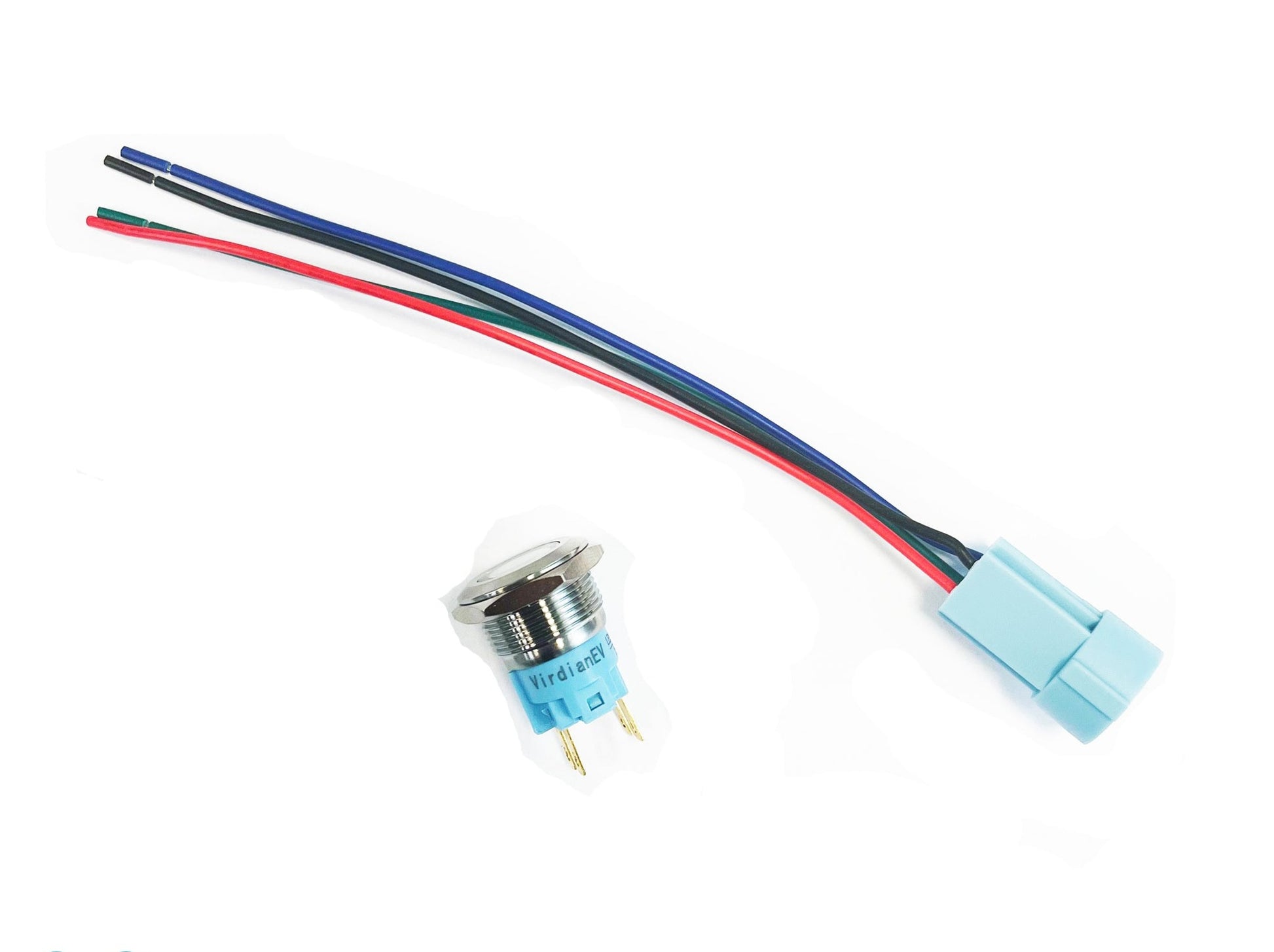

Panel mount External LED kit compatible with Viridian EV's EPC and EPC 2.0.

Kits come with panel mount LED and connectors required for the different generation of EPCs.

Can be used to make status indication of the EVSE more easily visible. The external LED is powered directly from our EPC (no additional PSU required) and mirrors the EPC's internal LED functionality.

Key Features

  • Powered directly from EPC
  • Mirrors status of EPC LED
  • RGB  tri-colour + white  LED
  • Compact
  • Metal (Stainless steel)
  • Waterproof IP67
  • 12V dc
  • ≤20mA
  • Common Anode  or  Common Cathode depending on EPC generation (see below )

The EPC and EPC 2.0 use slightly different LED's so please ensure you select the correct LED for your EPC:

EPC (E32T32, E32F32, E32T35 etc.) = Common Cathode

EPC 2.0 (EPC20L10, EPC20B10 etc.) = Common Anode

Dimensions:

Note: EPC 2.0 Kit includes includes additional pre-crimped wire harness with JST connector for easier external LED connection. (when using an External LED with an EPC 2.0, remove EPC light pipe and pass wires through existing aperture before connecting to LED)
