By WCED

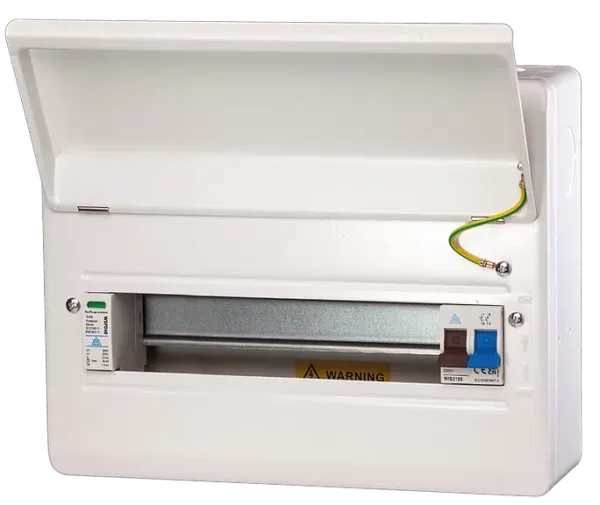

WCED SPD Metal Consumer Units - Main switch + SPD

£52.00 - £70.00
£52.00
£52.00
Availability: In stock
SKU: WME08/SP
Collections:

Key Features

  • Durable indoor-rated metal enclosure (IP40) — built for residential, commercial or light-industrial use.

  • High-quality steel construction with polyester powder-coated finish for long-lasting, professional results.

  • Versatile cable entry & wiring flexibility — supplied with multiple circular knock-outs (top & bottom: 25 mm & 32 mm; sides/back: 40 mm; plus larger rear slots) to suit a wide range of installation configurations.

  • Raised DIN rail and key-hole mounting — makes installation tidy and secure, improves cable routing and ensures a clean, professional finish.

  • Includes neutral and earth terminal bars — ready for use with MCBs, RCBOs or other DIN-rail mounted protective devices.

  • Ideal for custom switchgear or EV distribution boards — especially relevant for EV installers, electricians and DIY-pro installers building bespoke control/consumer units.

  • Includes Mainswitch + SPD

📐 Dimensions & Technical Data


IP Rating IP40 (indoor use)
Construction Steel with polyester powder coating
Cable Knock-outs 25 mm, 32 mm (top & bottom), 40 mm (sides/back), plus larger rear slots
Mounting Raised DIN rail; wall-mountable via raised key-holes
Included Accessories Neutral & Earth terminal bars



Variant Width (mm) Height (mm) Depth (mm)

4 way

 130 240 110

6 way

 160 240 110

8 way

 232 240 110

10 way

 232 240 110

12 way

 304 240 110

14 way

 304 240 110

16 way

 376 240 110

18 way

 376 240 110

22 way

 448 240 110

🛠️ Why Choose This Enclosure

This enclosure is the perfect blank-slate for electricians and installers who want full control over their wiring layout and protective gear. Whether you're building a standard domestic consumer unit, a small commercial distribution board, or a bespoke EV charging distribution enclosure — this empty IP40 metal box gives you maximum flexibility.

The handy cable knock-outs and raised DIN rail make installation cleaner and faster, with proper cable routing and room for expansions. A quality powder-coated finish ensures durability and a professional look.

⚙️ Typical Applications

  • Domestic or commercial consumer unit builds (MCBs / RCBOs)

  • EV charger distribution boards (single or 3-phase)

  • Replacement or upgrade housing for existing switchgear

  • Custom-built switchgear for workshops, garages, small commercial premises
