WCED 63A 4-Pole Modular Contactor

£19.00
£23.00 £19.00
-£4.00
Availability:
SKU: W-CON-63A-4P
Collections:

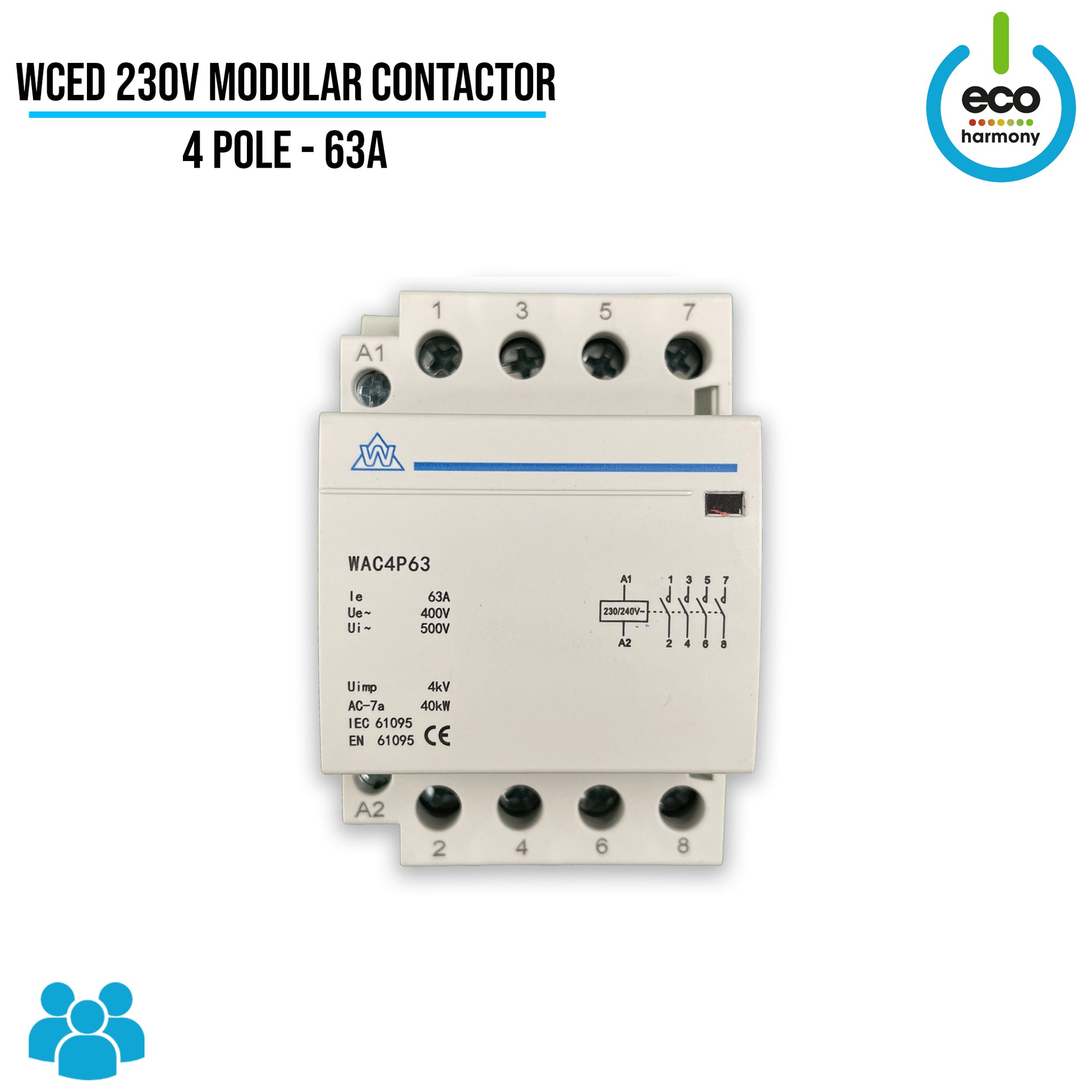

63A 4-Pole modular Contactor (NO) suitable for those building their own EVSE / charge points. This contactor will allow the utilisation of single or 3-phase power if it is available. Correct and safe installation is important!

4 Pole
  • 4 Normally Open contacts
  • DIN rail mounted
  • 230V AC / 50Hz Coil
  • IP20 (needs to be in suitable enclosure for outdoor use)
  • In accordance with IEC/EN 61095

Dimensions

  • 54mm x 68mm x 84mm
  • DIN 4 module width
Manufacturer Part Number: WAC4P63

Datasheet

Safe use

A suitable rated RCBO/RCD device may also be required in the final circuit to provide the correct level of protection whilst avoiding unnecessary tripping. Always consult wiring regulations or a electrical contractor to be sure.

Users of this product assume responsibility for the correct design and installation of their EVSE. Consult the Ecoharmony website or an electrical contractor if needed. Ecoharmony will not be held liable for injury to living creatures nor damage to property arising from incorrect use of this product.
